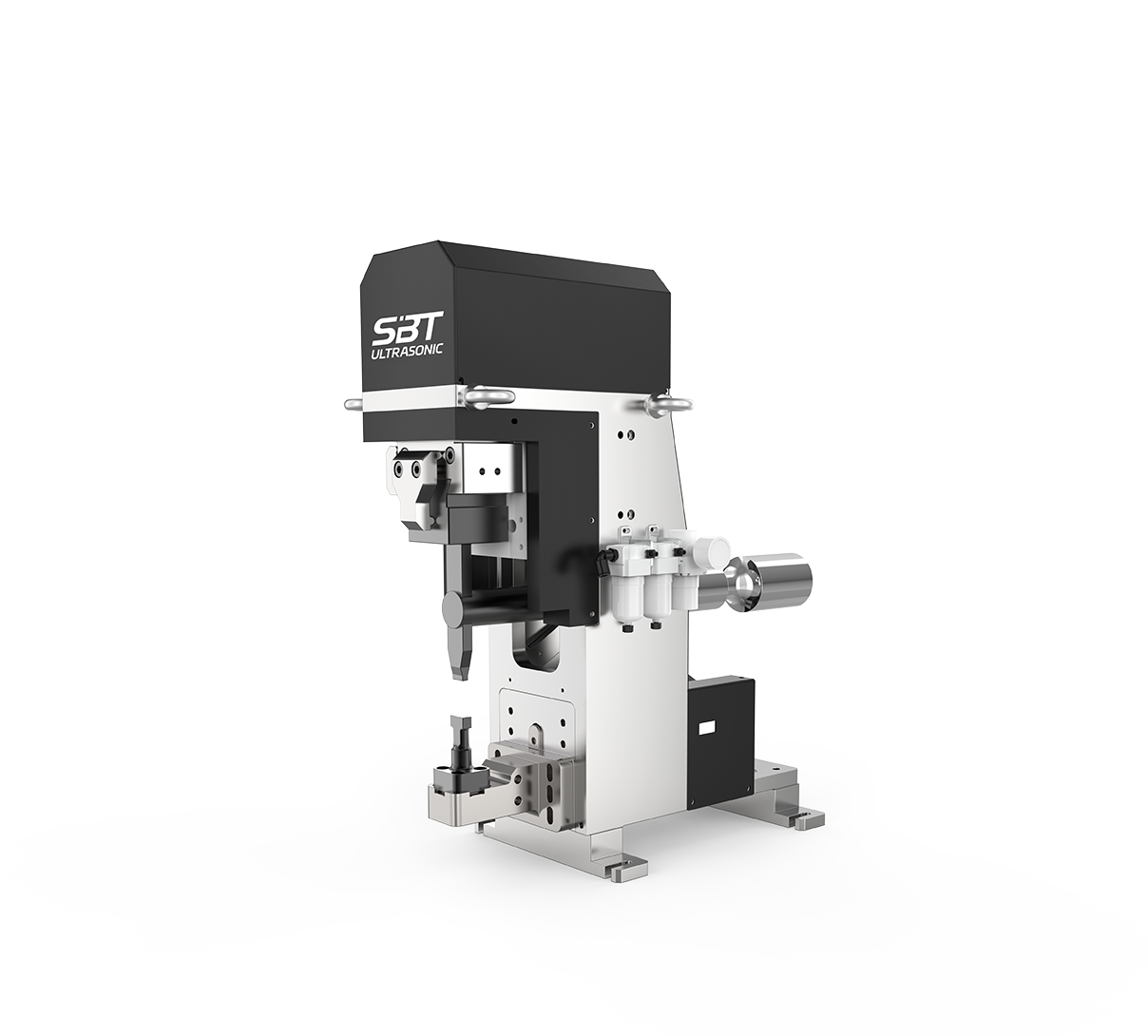

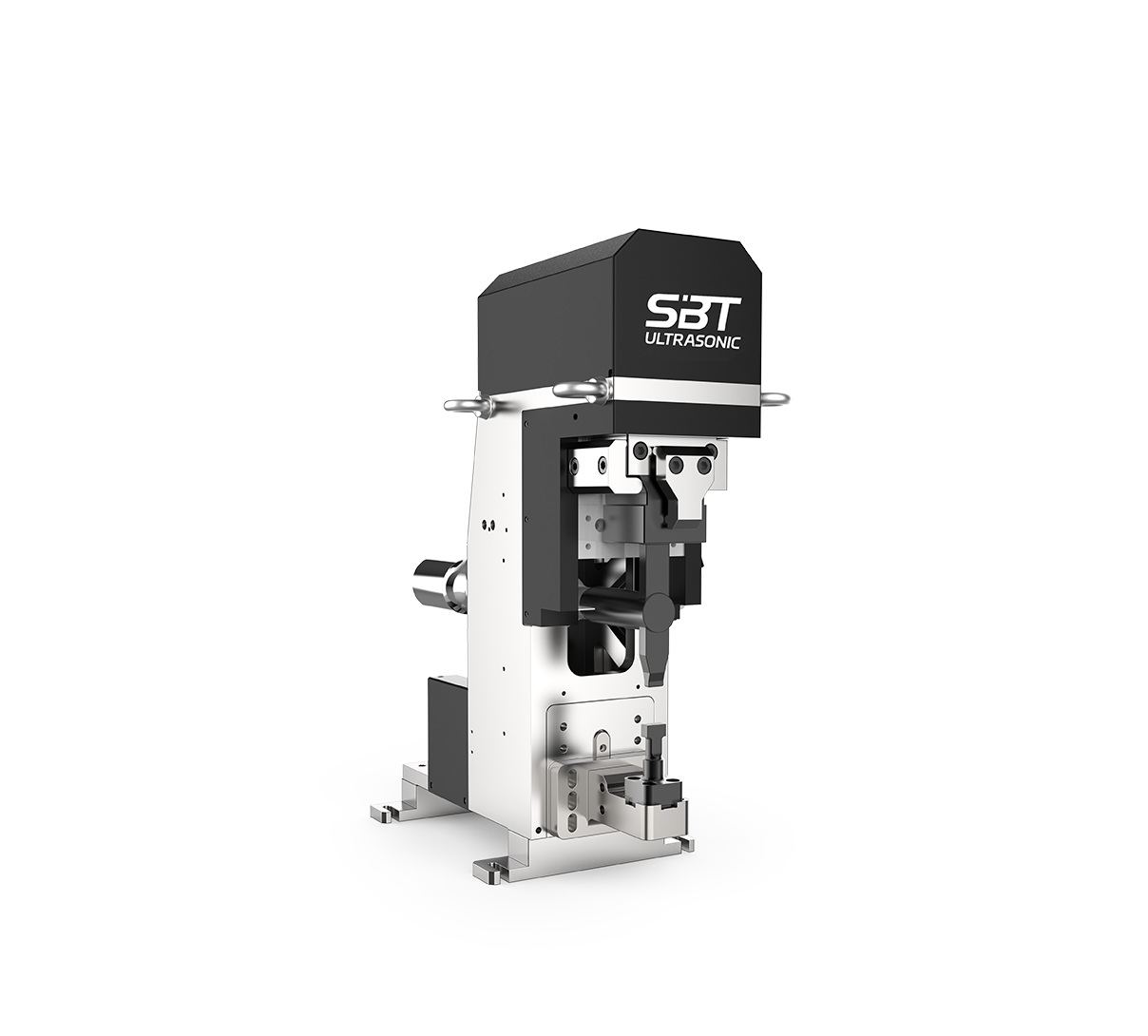

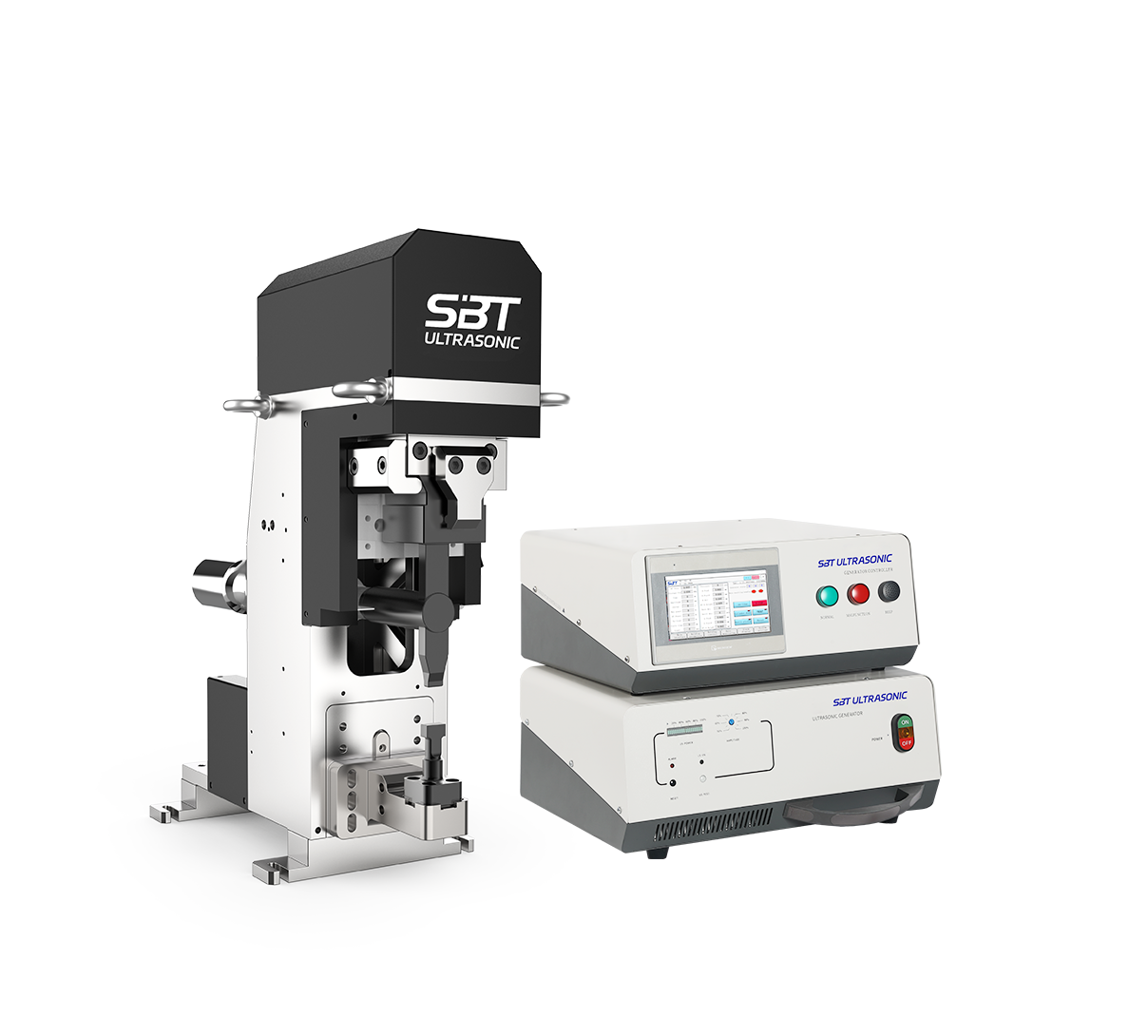

Small Wedge Ultrasonic Welder WES
Application

Unprotected square shell battery

Prismatic cell and pouch cell tab welding

Copper or aluminum cable welding

Copper sheet or aluminum busbar welding

Features

Integrated wedge structure

Compact and lightweight

Wedge-Reed structure with no welding horn deformation

Customizable welding horn and anvil tooling

Accurate welding positioning

Easy and safe operation

Optional welding quality online monitoring system

Technical Parameter
Model
2CS-WES Series
Frequency
20kHz
Rated Power
5-7kW
Transducer Power
6kW
Welding Pressure
≤4100N
Amplitude
≤65μm
Interact
Serial Port/Ethernet
NG Signal
I/O
Height Detection Accuracy
0.01㎜
Weight
91kg
Welding Mode
Time/Energy
