Ultrasonic Wire Harness Welder WL
Application

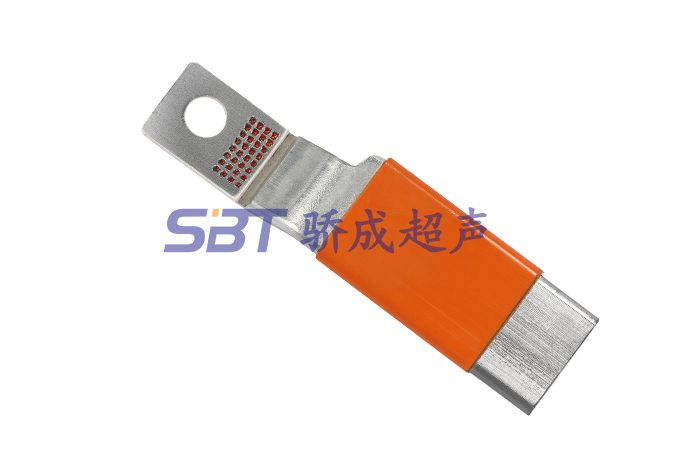

Large cable to cable, terminal to terminal, copper sheet and aluminum sheet
Features
Fully digital ultrasonic system
Maximum welding power 14000 W
Welding head and bottom mold support customization
Easy to operate
Customizable semi-automatic and fully automatic welding workbenches, supporting multiple wire entry methods and directions
Technical Parameter
Mode
Duration/Energy
Frequency
20 kHz
Amplitude Setting
10-70μm
Cable Size(Cu)
95㎜² /120㎜²
Power Supply
380 V
Air Pressure
0.6 Mpa
Protect
Password and parameter protection
Control
IPC control
Data
Traceable
